Project background

The presented work was part of the MIND6003 Interdisciplinary Team Project where a team of 1st year PhD students from MINDS CDT (University of Southampton, ECS) worked in collaboration to address a practical, real-world problem over a period of 18 weeks.

Motivation

The computational and memory requirements of state-of-the-art neural networks are usually considered the primary concerns when deploying them on resource-constrained edge devices. The limited energy budget, under which these devices have to frequently operate, introduces the need of estimating the amount of energy required per inference from these models. The aim of this project was to extend existing work in the field of Keyword-Spotting on Arm microcontrollers presented in Hello Edge: Keyword Spotting on Microcontrollers by capturing real-life energy measurements per inference.

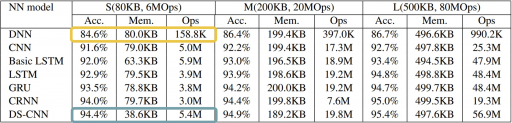

The types of neural networks for which energy measurements were captured were a standard Multi-Layer Perceptron (MLP) and a depthwise-separable CNN. Both networks were trained on Google's Speech Command Dataset developed specifically for Keyword-Spotting applications. The motivation behind experimenting with these two types of networks specifically was their considerable differences in the memory footprint and number of operations required per inference (Table 1)

Keyword-Spotting

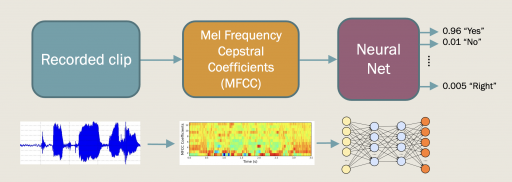

The implemented Keyword-Spotting algorithm can be separated into two distinct parts. The first one is responsible for creating a perceptually relevant feature map by extracting the Mel-Frequency Cepstral Coefficients (MFCC) from the recorded audio clip. The MFCC extraction process involves splitting the time-domain signal into overlapping windows and applying a series of signal-processing operations on them (Figure 1). The extracted feature map is then used as an input to the classification networks (Figure 2).

Results

The measurements showed that the energy required per classification from the ds-CNN was approximately 30x higher than that required by the MLP. An important observation was that the Mel-Frequency Cepstral Coefficients (MFCC) calculation introduces a considerable energy overhead independently of the choice of neural network.

Measurements were obtained by deploying the models on an STM32 F756ZG Nucleo board. A demo Keyword-Spotting application was developed for the STM32 F769I Discovery Board. Project code and energy measurements can be found at the project's GitLab repository.
