Physical Design

In physical design, various stages of processing refine the abstract logical design, as represented by the gate-level netlist, into the final geometric layout of the GDSII file that is needed for foundry fabrication. The GDSII file contains a database of geometrical design information consisting of many layers of geometrically defined objects that are used to create the pattern masks needed for IC fabrication.

The design flow uses various tools and files during the stages of processing to optimise the placement of items in the netlists and the routing of interconnections between them without breaking any of the design or manufacturing constraints.

Although viewed as a sequence of stages of refinement from abstract logical design to final layout, the activity is usually as number of iterations of the Physical Design processes, each optimising the physical design towards certain design goals based on power, performance, area, etc.

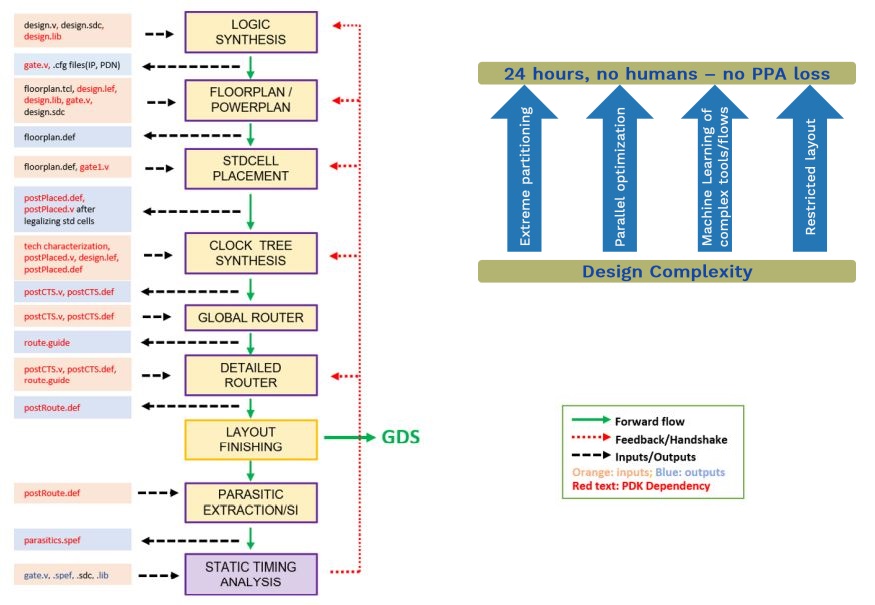

The major Electronic Design Automation tool vendors have various tools to support the Physical Design flow stages. The OpenROAD project is developing a fully autonomous, open-source tool chain for digital layout generation with an initial focus on the RTL-to-GDSII phase of system-on-chip design. The aim is to implement automated flows using integration of machine learning, problem partitioning and decomposition, and parallel/distributed search and optimization.

Tool chains support varies proprietary or open file formats for intermediate results.

Cadence

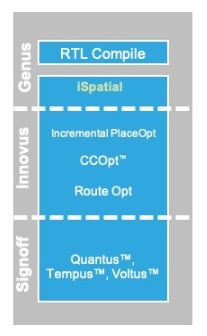

The Cadence physical design flow follows from Genus (synthesis) through Innovus (place and route), Tempus (static timing), and Voltus (IR analysis) which all operate off a single data model to ensure overall design integrity as various aspects of the physical limitations associated with actual fabrication using a specific foundry technology are factored into the final design to be sent to the foundry.

Die Area / Floorplan Aspect Ratio

The Cadence tools offer an Automatic floor plan option to get an early view of area which can be helpful in higher level design decision making. In SoC Labs projects this tends to be used to get an initial area view for a custom accelerator design, especially if the RTL design has been generated.

Power

The Cadence Voltus tool provides power analysis, especially IR drop.





Synopsys

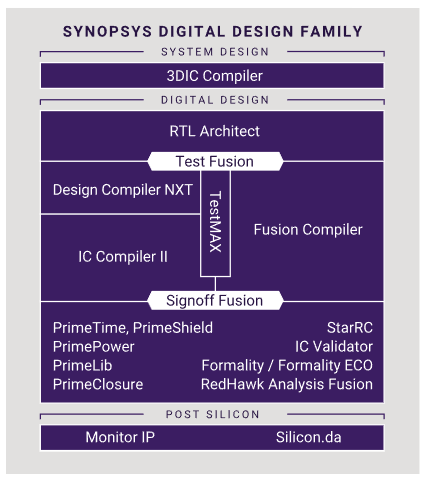

The Synopsys physical design flow follows from Fusion Compiler (synthesis) through sign off tools.

Die Area / Floorplan Aspect Ratio

The Synopsys tools offer an Automatic floor plan option to get an early view of area which can be helpful in higher level design decision making. In SoC Labs projects have used RTL Architect to get an initial area view for a custom accelerator design, especially if the RTL design has been generated.

Power

The Synopsys PrimePower tool provides power analysis, especially IR drop.
