Project Overview

SoC Labs reference designs, such as megaSoC, are developed to allow integration of open source IP along with the core Arm AAA licensed IP to create complete System on Chip implementation.

This projects aim is to integrate of an open source SD Card interface submodule into megaSoC with a focus on developing a clear verification strategy to ensure it is know to work, end-to-end, to provide a persistent storage mechanism.

Modern embedded SoCs usually require some persistent storage to store configuration, log data, and exchange files.  The industry standard SD Card is an ideal medium for this. MegaSoC can integrate open source IP to support SD Card. This project uses the open source ZipCPU sdspi controller as the basis for a SD card interface submodule of MegaSoC that supports SPI, SDIO, and eMMC modes from a single RTL codebase.

The SD Card standards supports a variety bus interface and data transfer performance needs. This project targets the SDIO 4-bit native mode path, using the sdiodrv.c driver.

Integrating a new submodule and knowing it works end-to-end are two very different things. In this case, a controller that synthesises cleanly and passes unit-level RTL simulation can still stall indefinitely during card initialisation, produce silent data corruption on block boundaries, or behave differently across the many and varied SD card brands. A goal of this project is to develop a layered verification strategy to look to address these end to end system challenges. The motivation is partly motivational, any MegaSoC application that depends on persistent storage needs a trustworthy foundation and partly practical as the sdspi controller has a known latent issue in its sdrxframe receive module, identified through formal verification, that simulation alone may never have exposed.

The first stage in the layered verification strategy is confirming the correct raw block read and write behaviour at the driver level through C-based integration tests, then building upward to verify the filesystem operations over the same hardware path.

Software-to-Hardware flow

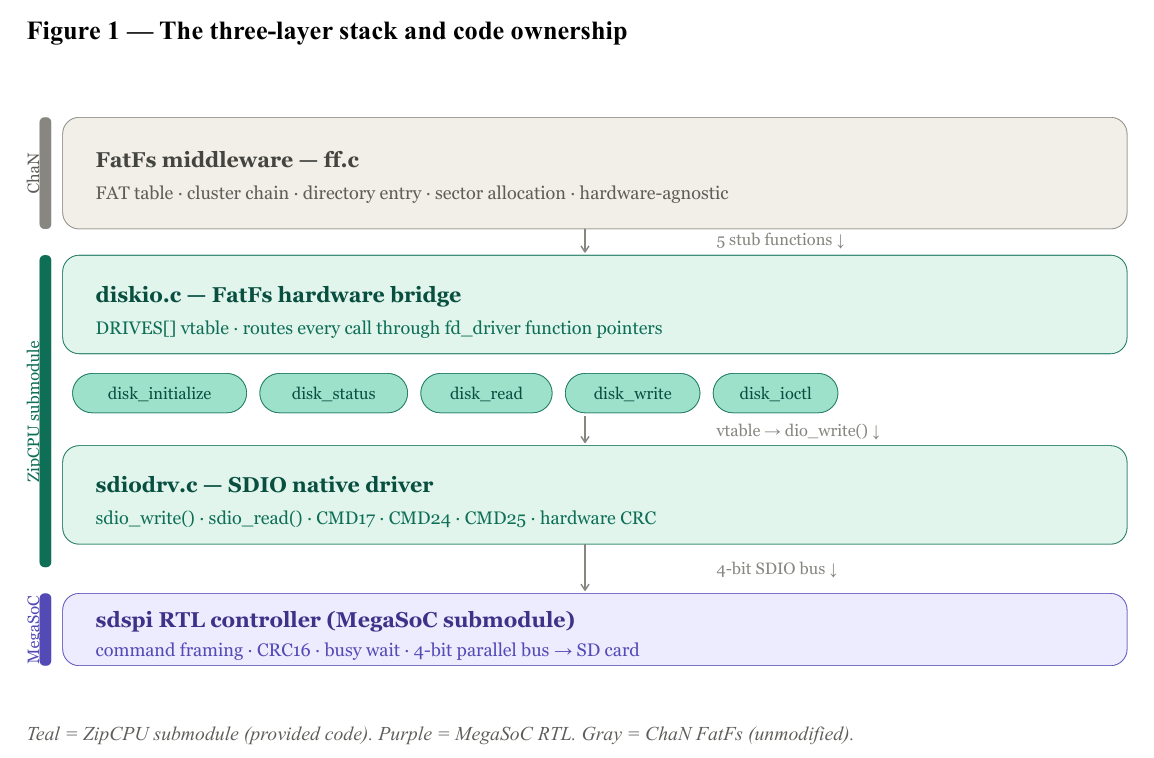

Writing a file through the full software stack involves three layers, each provided by a different source and each with a clearly defined responsibility. Understanding exactly how they connect — and where the boundaries are — is both the intellectual contribution of this integration work and the foundation of the verification methodology.

To implement the top level file system support, FatFs, the open-source filesystem middleware by ChaN, has been chosen as it fits with the SoC Labs ethos of minimising system resource use, and therefore cost, as this implementation has been used in many microcontrollers and embedded systems as it takes up little space in memory.

FatFS handles all filesystem-level concerns: FAT table maintenance, cluster chain resolution, directory entry management, and sector allocation. FatFs is deliberately hardware-agnostic. It communicates downward through exactly five stub functions — disk_initialize, disk_status, disk_read, disk_write, and disk_ioctl — which it calls without any knowledge of what lies beneath them.

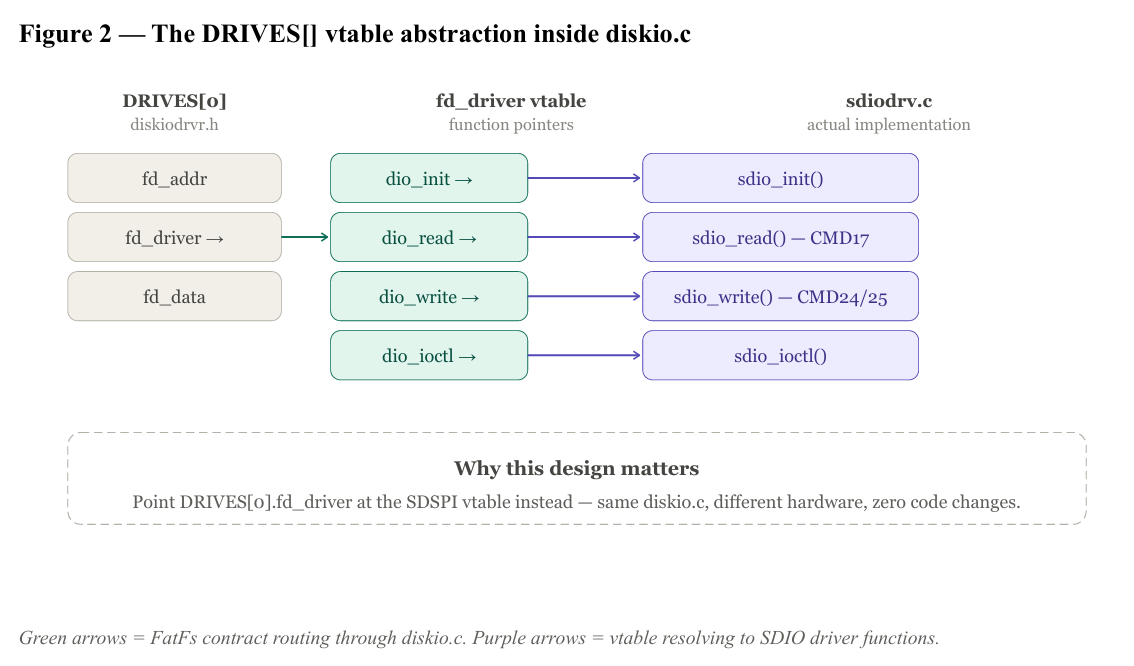

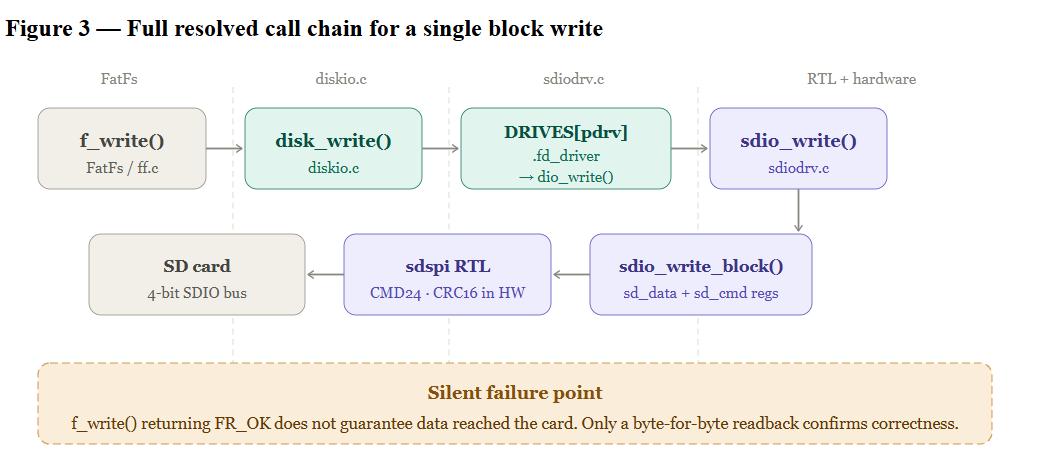

Those five stubs are implemented in diskio.c, which is provided as part of the ZipCPU sdspi submodule rather than written from scratch. What makes this implementation architecturally interesting is that it does not call the SDIO driver directly. Instead, every stub routes through a driver abstraction table — DRIVES[], defined in diskiodrvr.h — where each entry holds a hardware base address (fd_addr), a vtable of function pointers (fd_driver: dio_init, dio_read, dio_write, dio_ioctl), and a live driver handle (fd_data) populated at initialisation time. A disk_write() call therefore resolves through the chain: DRIVES[pdrv].fd_driver->dio_write(DRIVES[pdrv].fd_data, sector, count, buff). The SDIO driver is plugged into this table at startup — meaning the same diskio.c can serve either the SDSPI or SDIO backend without modification, simply by changing the table entry. This is a clean separation of concerns. This separation of concerns was not only determined but was also verified as part of this project, not assumed.

The bottom layer is sdiodrv.c, part of the SD Card submodule, which the DRIVES[] vtable points to at runtime. It translates dio_read and dio_write calls into native SDIO commands over the 4-bit parallel bus: CMD17 for single block reads, CMD24 for single block writes, CMD25 for multi-block writes. CRC generation and checking is handled entirely in hardware by the sdspi RTL controller. The addressing mode — byte for SDSC, block for SDHC/SDXC — is determined once during sdio_init() from the CCS bit in the ACMD41 response and applied automatically to every subsequent transfer.

There is one detail the layer description alone does not make visible: disk_initialize calls dio_init, which calls sdio_init(), which executes the full SDIO initialisation sequence. FatFs triggers this once, at f_mount() time, and trusts the result completely. If sdio_init() returns NULL, disk_initialize returns STA_NODISK, FatFs returns FR_NOT_READY, and nothing in that chain tells you which step of initialisation failed. This opacity is precisely why the initialisation sequence is tested and documented independently before FatFs is involved — the integration test results in this project provide the evidence that the full sequence completes correctly in simulation, confirmed by PASS: sdio_init returned a valid driver handle in the test output.

SDIO Initialisation:

Fully understanding the initialisation sequence matters for integration testing because each stage introduces a new failure mode that C test code needs to handle correctly. The sequence is orchestrated entirely by sdio_init(), and it does far more than simply wake the card up — it negotiates the operating voltage, identifies the card, assigns it an address on the bus, selects it, widens the bus from 1-bit to 4-bit, and then attempts to step the clock up through a hierarchy of high-speed modes depending on what both the card and the PHY can support. If any stage fails, the driver has explicit error paths that either bail entirely or degrade gracefully to a slower mode. The acknowledged limitations stated are the driver currently handles only 3.3V mode even if 1.8V switching hardware exists, and it does not recover well from a failed initialisation.

Verification Strategy:

This project addresses verification at two distinct levels: functional correctness of the SDIO controller integration through C-based testing in simulation, and physical correctness through hardware validation on a PYNQ-Z2 FPGA platform. The downstream design flow — from gate-level netlist through to ASIC implementation — is handled within the main MegaSoC project and is out of scope here.

The verification approach is intentionally layered. Simulation establishes that the software stack and RTL controller interact correctly under ideal conditions. Hardware validation then confirms that the same integration survives contact with a real SD card, a real AXI bus, and real signal timing — conditions that behavioural simulation cannot reproduce. Simulation without hardware leaves timing and card variability unverified, while hardware bring-up without prior simulation makes debugging exponentially harder because software bugs and hardware bugs become indistinguishable.

C-based Integration Testing in Simulation

Functional correctness is established through a structured C test suite (sdio_tests.c) compiled against the MegaSoC software stack and executed against the RTL simulation. The test suite exercises fourteen scenarios covering initialisation, card information validity, single block read, read repeatability, single block write with readback, multi-block write with readback, invalid argument handling, a repeated transfer stress test across eight iterations and corner cases verification as well . Pass criteria are explicit for each test: sdio_init() must return a non-NULL handle, card parameters (OCR, RCA, block size, sector count) must be non-zero and self-consistent, and every write/readback comparison must match byte-for-byte using compare_buffers().

The simulation model (mdl_sdio.v) was itself modified during this project to correctly respond to ACMD51 (SCR register transfer), CMD6 (SWITCH_FUNC status block), and the CMD24/CMD25 write path with DAT0 busy indication. This is an important limitation to state explicitly: the simulation model was modified while executing the tests. This is not a weakness of the testing methodology — it is a known and documented constraint that motivates the hardware validation phase.

All fourteen test cases currently pass in simulation with zero errors, confirmed by the ** TEST PASSED ** output and Total SDIO errors = 0. The simulation log provides timestamped evidence of each command transaction — CMD17 and CMD24 sector addresses, data patterns at write and read, and CRC results — making the result reproducible and auditable.

Hardware Validation on PYNQ-Z2

For full integration confidence, the design will be validated on a physical PYNQ-Z2 development board connected to a real microSD card. The PYNQ-Z2 carries a Xilinx Zynq-7000 SoC (XC7Z020), which combines Artix-7 FPGA fabric with a hard dual-core ARM Cortex-A9 Processing System. In this project, the FPGA fabric hosts the MegaSoC RTL — including the sdspi controller — while the ARM Cortex-A9 acts as the host processor, running the same C test suite used in simulation. This mirrors the intended MegaSoC deployment architecture closely enough to constitute a meaningful integration test rather than a purely academic exercise.

The hardware validation is structured as five sequential stages, each of which must pass before the next begins. Stage 1 confirms the SDIO controller clock reaches 400 kHz before any command is issued, verified by reading the sd_phy register directly. Stage 2 issues only CMD0 and CMD8 to confirm physical card presence and command line integrity. Stage 3 runs the full sdio_init() sequence, where two specific differences from simulation are expected and will be documented: the ACMD41 poll loop will iterate significantly more times than in simulation , and the SCR register will report 4-bit bus width support, causing ACMD6 to fire for the first time. Stage 4 runs the existing test suite unchanged on real hardware. Stage 5 adds a FatFs layer test (f_mount, f_open, f_write, f_read, f_close) that exercises the complete path from application code through the diskio.c vtable through sdiodrv.c to the physical card and back. Passing Stage 5 closes the stated project goal.

Three specific hardware-vs-simulation differences are anticipated and will be explicitly documented when observed: the 4-bit bus width activation via ACMD6 (SCR bit 2 = 1 on real cards versus 0 in the simulation model), the ACMD41 timing on a cold card versus the single-cycle response of the model, and the byte ordering through the OPT_LITTLE_ENDIAN = 1'b1 AXI path which can only be verified as correct by confirming specific byte values at specific buffer offsets on real hardware. These are not expected failures — they are predicted observations that the verification plan is designed to capture and document.
