There has been much request within the SoC Labs community for an Arm A-Class SoC that can support a full operating system platform, undertake more complex compute tasks and enable more complicated software loads. The Cortex-A53 is Arm's most widely deployed 64-bit Armv8-A processor and can provide these capabilities with power efficiency

This project mirrors the 'Arm Cortex-M0 microcontroller' project in establishing a baseline capability for the Cortex-A53 processor. It will lay the foundation for a megaSoC reference design in the same way the Arm Cortex-M0 microcontroller project laid the foundation for the nanoSoC reference design. Both foundational projects develop the core capabilities around the processor core including:

• Establishing the critical boot system
• The system debug environment
• An easy design transition from the FPGA prototyping flow to the full ASIC flow

The later will involve replicating the resources available in the Zynq FPGA processing system to allow the seamless transition between FPGA and ASIC.

towards megaSoC

Using these foundations work will be undertaken to develop a more complete megaSoC reference design. This system will have:

• Cortex A53 processor
• High bandwidth data bus (NIC400)
• High capacity memory (DDR)
• NVM storage for deploy-ability

 It will maintain resource for high data loads with configurable hardware accelerators working in combination with CPU cores under a complex software environment.

Milestone 1 - Minimum bootable subsystem

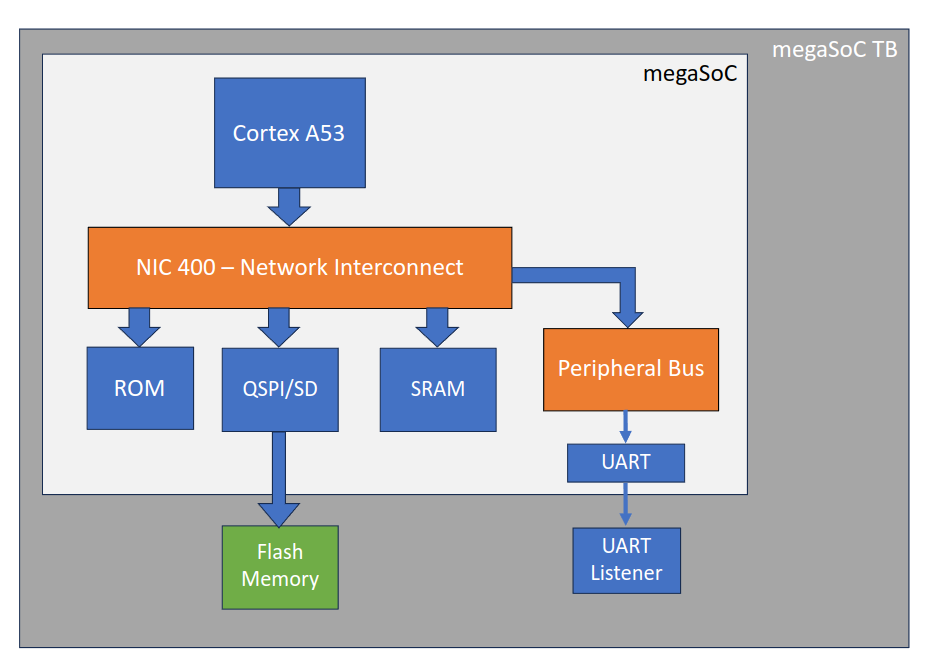

To start this project, we will begin with a minimum bootable subsystem in simulation. The idea for this subsystem is to be able to run code on the Cortex A53 and interact with the outer testbench (via UART)

From the above image you can see the basic architecture. This has a Cortex A53 connected to a NIC-400 bus. A ROM that acts as boot rom, XiP QSPI controller for instruction memory, and SRAM as data memory. The UART is included to allow for printf statements in the C code.

The XiP QSPI will currently be used as the entire instruction memory space, however in future this may be used only as a BIOS for a linux system. The rest of the linux software will be installed on external storage (either SD card or SATA capable device)

Boot Sequence

The boot sequence for the Arm Cortex A53 is a bit more complex than the Cortex M0 and requires some more care. The full information on this can be found from Arm here, which describes how to boot a Armv8-a processor.

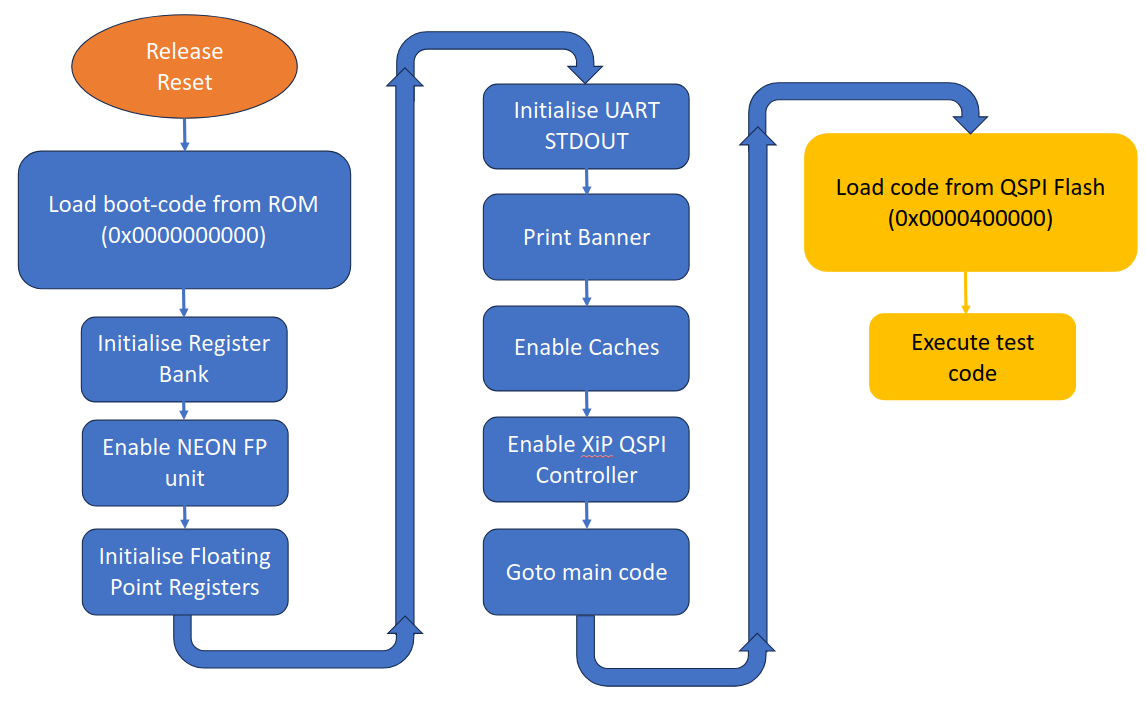

Above is a simplified boot sequence that we are using for this subsystem. The boot-code (in ROM) is responsible for starting the A53 in a clean state (i.e. registers are initialised) and enables the UART communication and caches (L2 and Flash Cache) before enabling the XiP QSPI controller and then setting the execution to the Flash region.

The expected output from the ROM boot-code is as follows:

SoCLabs MegaSoC
Flash enabled... Excecuting

This first stage booting process works as expected. However currently, our hello_world testcode looks like it is going straight into an exception. The code is as follows:

#include "host_chassis_control.h"
#include "system.h"
#include "system_level_functions.h"
#include "uart_stdout.h"

int main(void) {
  uint32_t errors = 0;

  printf("Hello SoCLabs MegaSoC\n");

}

However we don't see a print message. So further debugging is required.

A53 debugging in simulation

Debugging a complex processor like the A53 using the simulation GUI is difficult. That is why Arm processors are delivered with a Tarmac unit. These units are used in simulation to show exactly what the processor is executing, and can be very useful when debugging. The ca53_univent_follower module has to be included in the vc filelist, and the ca53_tarmac_dpi.so object must be loaded by the simulator. Exact details on how to do this are included in the README_tarmac.txt in the ca53univent directory.

The tarmac requires some libraries to be installed before use, most notable the libprotobuf.so.7 from protobuf 2.4.1. To install you can follow the steps outlined below (taken from here):

wget https://github.com/protocolbuffers/protobuf/releases/download/v2.4.1/protobuf-2.4.1.tar.bz2
tar -xvjf protobuf-2.4.1.tar.bz2
cd protobuf-2.4.1/
./configure --with-zlib --prefix=<prefix> CXX='g++ -m32 -std=c++98'
make install

WARNING

Currently this is not working for us, we get the message:

univent follower module: megasoc_tb.u_megasoc_chip_pads.u_megasoc_chip.u_megasoc_system.u_megasoc_tech_wrapper.u_megasoc_cpu_ss.u_cortexa53.g_ca53_cpu[0].u_ca53_cpu.u_ca53_noram.u_follower
/home/dwn1c21/SoC-Labs/megasoc_project/megasoc_tech/logical/CortexA53_1/logical/ca53univent/build_x86_32/bin/ca53_tarmac_decode: symbol lookup error: /home/dwn1c21/SoC-Labs/megasoc_project/megasoc_tech/logical/CortexA53_1/logical/ca53univent/build_x86_32/bin/ca53_tarmac_decode: undefined symbol: _ZN6google8protobuf8internal12kEmptyStringE
Error writing trace: Broken pipe

We are awaiting from Arm on a way to fix this issues and this page will be updated with the fix once we have it

UPDATE

We have received support from Arm on this issue with the tarmac module. It seems like its an issue of building the protobuf library on RHEL 8, they have supplied us with a compiled protobuf library to use (which I believe they compiled in RHEL 6) which now works. So back to debugging...

Now with the working A53 tarmac module, it could be seen that the issue was that when it changed to executing from the bootrom to the QSPI flash, there was an abort exception. After reviewing the simulation in the GUI, I could see there was some issue with our AHB QSPI module. As this module is not fully verified yet, we have decided to remove it for now and replace this with an AHB SRAM module (we've kept the same AHB port and range so that it is easy to re-instantiate the QSPI module once it is working)

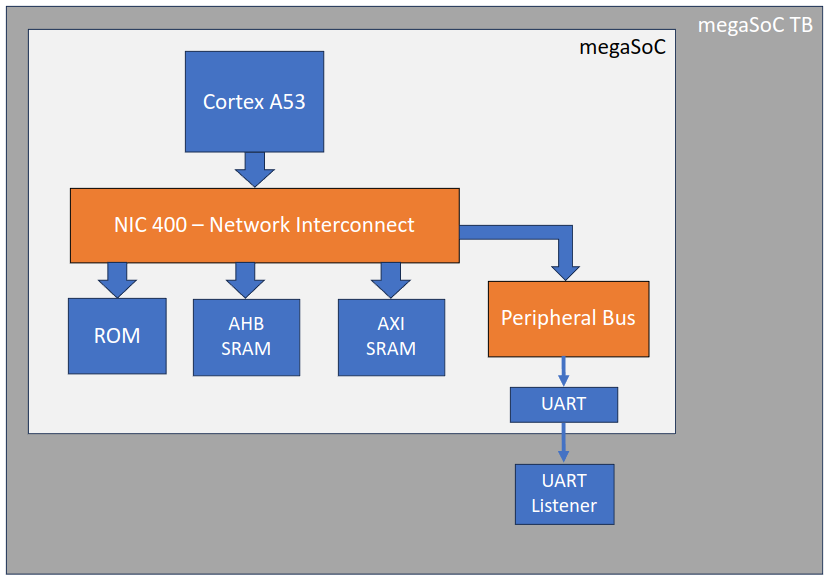

The simplified testbench structure can be seen above. When using this we get a successful boot. The main bootcode now looks like below:

boot.s

.section SECURE_ROM_BOOT, "ax"
            .balign 8
            .global    Image$$ARM_LIB_STACK$$ZI$$Limit
            .global    __main
            .global   monitor_vectors
            .global   __stack_multi_cpu_init

            .weak monitor_vectors
// ------------------------------------------------------------------------------
// Core initialisation from reset state
// ------------------------------------------------------------------------------
            .global app_bl1_entry
            .type app_bl1_entry, @function

app_bl1_entry:
            MOV     x0,#0x0
            MOV     x1,x0
            MOV     x2,x0
            MOV     x3,x0
            MOV     x4,x0
            MOV     x5,x0
            MOV     x6,x0
            MOV     x7,x0
            MOV     x8,x0
            MOV     x9,x0
            MOV     x10,x0
            MOV     x11,x0
            MOV     x12,x0
            MOV     x13,x0
            MOV     x14,x0
            MOV     x15,x0
            MOV     x16,x0
            MOV     x17,x0
            MOV     x18,x0
            MOV     x19,x0
            MOV     x20,x0
            MOV     x21,x0
            MOV     x22,x0
            MOV     x23,x0
            MOV     x24,x0
            MOV     x25,x0
            MOV     x26,x0
            MOV     x27,x0
            MOV     x28,x0
            MOV     x29,x0
            MOV     x30,x0

            MSR     SP_EL0,x0
            MSR     SP_EL1,x0
            MSR     SP_EL2,x0
            MOV     sp,x0
            MSR     ELR_EL1,x0
            MSR     ELR_EL2,x0
            MSR     ELR_EL3,x0
            MSR     SPSR_EL1,x0
            MSR     SPSR_EL2,x0
            MSR     SPSR_EL3,x0

//===================================================================
// Set Vector Base Address Register (VBAR) to point to this application's vector table
//===================================================================
            LDR x0, =monitor_vectors
            MSR VBAR_EL3, x0             // EL3 sets vector base address

//===================================================================
// Clear the PSTATE.A fpr enabling SError Aborts (Posion Error)
//===================================================================
            MSR     DAIFCLR, #0x4
            ISB

//===================================================================
// Enable NEON and initialize the register bank
//===================================================================
            MRS     x0, ID_AA64PFR0_EL1
            SBFX    x5, x0, #16, #4         // Extract the floating-point field

            MOV     x1, #(0x3 << 20)
            MSR     cpacr_el1, x1
            MRS     x1, cptr_el3

            BIC     x1, x1, #(0x1 << 10)      // Ensure that CPTR_EL3.TFP is clear
            MSR     cptr_el3, x1
            ISB     sy
#ifndef NOFP
            FMOV    d0,  xzr
            FMOV    d1,  xzr
            FMOV    d2,  xzr
            FMOV    d3,  xzr
            FMOV    d4,  xzr
            FMOV    d5,  xzr
            FMOV    d6,  xzr
            FMOV    d7,  xzr
            FMOV    d8,  xzr
            FMOV    d9,  xzr
            FMOV    d10, xzr
            FMOV    d11, xzr
            FMOV    d12, xzr
            FMOV    d13, xzr
            FMOV    d14, xzr
            FMOV    d15, xzr
            FMOV    d16, xzr
            FMOV    d17, xzr
            FMOV    d18, xzr
            FMOV    d19, xzr
            FMOV    d20, xzr
            FMOV    d21, xzr
            FMOV    d22, xzr
            FMOV    d23, xzr
            FMOV    d24, xzr
            FMOV    d25, xzr
            FMOV    d26, xzr
            FMOV    d27, xzr
            FMOV    d28, xzr
            FMOV    d29, xzr
            FMOV    d30, xzr
            FMOV    d31, xzr
#endif
            B   __main

bootloader.c

#include "system.h"
#include "qspi_flash.h"
#include "cpu_asm_codes.h"
#include "uart_stdout.h"
#include <stdio.h>
int main(void) {
  uint32_t errors = 0;
  UartStdOutInit();

  printf("SoCLabs MegaSoC\n");
  enable_caches();
  enable_caches_el1();
  printf("Flash Enabled...Booting\n");

  void (*main_code)(void) = (void (*)())0x00400000;
  main_code();
}

hello_world.c

#include "uart_stdout.h"
#include <stdio.h>

int main(void) {
  uint32_t errors = 0;
  UartStdOutInit();

  printf("Hello SoCLabs MegaSoC\n");
  UartEndSimulation();
}

And the output we get from simulation is:

uartcapture: Generating output file logs/uart.log using MCD 00000003 @ megasoc_tb.u_uart_capture
univent follower module: megasoc_tb.u_megasoc_chip_pads.u_megasoc_chip.u_megasoc_system.u_megasoc_tech_wrapper.u_megasoc_cpu_ss.u_cortexa53.g_ca53_cpu[0].u_ca53_cpu.u_ca53_noram.u_follower
[M] 119692088.0 ()  Constructing static cortexa53 follower
[M] 119692088.0 ()  Tracing 'megasoc_tb.u_megasoc_chip_pads.u_megasoc_chip.u_megasoc_system.u_megasoc_tech_wrapper.u_megasoc_cpu_ss.u_cortexa53.g_ca53_cpu[0].u_ca53_cpu.u_ca53_noram.u_follower' to 'ca53_tarmac.0.0.0.log'
SoCLabs MegaSoC
Flash Enabled...Booting
Hello SoCLabs MegaSoC
Test Ended
$stop at time 753955 ns Scope: megasoc_tb.u_uart_capture.p_sim_end File: /home/dwn1c21/SoC-Labs/megasoc_project/verif/trace/megasoc_uart_capture.v Line: 244
xterm-256color is Not a valid terminal...
ucli% ca53_finish called
           V C S   S i m u l a t i o n   R e p o r t

Generic Interrupt Controller integration

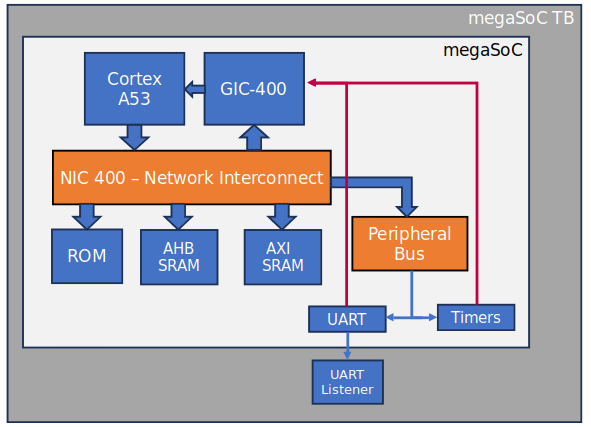

The next step is to add interrupt handling. The A53 implements a Generic Interrupt Controller ("GIC") architecture. In order to support multiple interrupts a generic interrupt controller is required. The GIC-400 from Arm is the smallest GIC from Arm. Our aim with megaSoC is to focus on a design that is simple to understand and has a low cost of fabrication for academic use. The design does not need support for multiple compute clusters so the GIC-400 is a good choice.

Behavioural integration is relatively straight forward. The GIC-400 has an AXI4 slave interface in order to program the interrupts once the interrupt ports are connected from GIC to CPU. In order to verify the behaviour of the GIC-400, a  an APB timer is added to the peripheral subsystem to generates interrupts.  The updated architectural view is below, with the red lines indicating the shared peripheral interrupt connections.

The software system for interrupt handling initialises the interrupts for the GIC-400, configuring which CPU should service the interrupt (if there are multiple CPUs/cores). Whether the interrupt is edge or level triggered, a priority level, which are initialised in the GIC distributor. The CPU needs the location of the interrupt handler configured for that interrupt, before enabling the interrupt in the GIC and enable interrupts for the CPU.

Once the interrupt is initialised, the timer is setup and there is a wait for the interrupt. The WFI instruction has not been used as if the interrupt doesn't work, the execcution will just hang, so setup a timeout function in case the interrupt is not called or serviced properly. See the below code for more detail

gic_tests.c

#include "uart_stdout.h"
#include "sys_memory_map.h"
#include "sys_intr_map.h"
#include <stdio.h>
#include "gic400.h"
#include "CMSDK.h"
#include "irq.h"


int timer0_id_check(void);
int timer_interrupt_test_1(CMSDK_TIMER_TypeDef *CMSDK_TIMER);
static void timer_interrupt(int num, int src);

/* peripheral and component ID values */
#define APB_TIMER_PID4  0x04
#define APB_TIMER_PID5  0x00
#define APB_TIMER_PID6  0x00
#define APB_TIMER_PID7  0x00
#define APB_TIMER_PID0  0x22
#define APB_TIMER_PID1  0xB8
#define APB_TIMER_PID2  0x1B
#define APB_TIMER_PID3  0x00
#define APB_TIMER_CID0  0x0D
#define APB_TIMER_CID1  0xF0
#define APB_TIMER_CID2  0x05
#define APB_TIMER_CID3  0xB1
#define HW32_REG(ADDRESS)  (*((volatile unsigned long  *)(ADDRESS)))
#define HW8_REG(ADDRESS)   (*((volatile unsigned char  *)(ADDRESS)))

/* Global variables */
volatile int timer0_irq_occurred;
volatile int timer1_irq_occurred;
volatile int timer0_irq_expected;
volatile int timer1_irq_expected;
volatile int counter;


int main(void) {
  uint32_t errors = 0;
  UartStdOutInit();

  printf("GIC tests - SoCLabs MegaSoC\n");

  if(timer0_id_check()!=0){
    printf("Timer 0 not present skipping test\n");
    printf ("\n** TEST SKIPPED **\n");
    UartEndSimulation();
  }
  // Timer present - continue
  errors += timer_interrupt_test_1(CMSDK_TIMER0);

  UartEndSimulation();
}


/* --------------------------------------------------------------- */
/* Peripheral detection                                            */
/* --------------------------------------------------------------- */
/* Detect the part number to see if device is present              */
int timer0_id_check(void)
{
  uint32_t timer_id;
  uint32_t ID0, ID1;
  uint32_t timer_ctrl;
  timer_ctrl = CMSDK_TIMER0->CTRL;
  ID0=CMSDK_TIMER0->PID0 & 0xFF;
  ID1=CMSDK_TIMER0->PID1 & 0xFF;
  timer_id = CMSDK_TIMER0->PID2 & 0x07;
  if ((ID0 != 0x22) ||
      (ID1 != 0xB8) ||
      (timer_id != 0x03))
    return 1; /* part ID & ARM ID does not match */
  else
    return 0;
}

/* --------------------------------------------------------------- */
/*  Timer interrupt test 1                                         */
/* --------------------------------------------------------------- */
/*
  Interrupt enable:
   Timer is enabled, with reload value set to 0x7F (128 cycles),
   and timer interrupt is enabled.
   check that timer interrupt has take place as least twice
   when counter (software variable) is increased from 0 to 0x300.
   If counter is > 0x300 but less than two timer interrupt is received
   (timerx_irq_occurred < 2), then flag it as time out error.

  Interrupt disable:
   Timer is enabled, with reload value set to 0x1F (32 cycles),
   and timer interrupt is disabled.
   The counter (software variable) is increased from 0 to 0x100.
   Check that timer interrupt did not take place.
   (timer0_irq_occurred and timer1_irq_occurred are 0).

*/
int timer_interrupt_test_1(CMSDK_TIMER_TypeDef *CMSDK_TIMER){
  int return_val=0;
  int err_code=0;

  puts ("Timer interrupt test");
  puts ("- Test interrupt generation enabled.");
  CMSDK_TIMER->VALUE = 0; /* Disable timer */

  gic_initialise_intr(TIMER0_INTR,0,1,0);
  gic_install_handler(TIMER0_INTR, &timer_interrupt);
  gic_enable_interrupt(TIMER0_INTR);
  timer0_irq_expected = 1;
  timer1_irq_expected = 0;
  timer0_irq_occurred = 0;
  timer1_irq_occurred = 0;


  enable_irq();

  CMSDK_TIMER->RELOAD = 0x01FF;
  CMSDK_TIMER->VALUE  = 0x01FF;
  CMSDK_TIMER->CTRL   = 0x0009;  /* Timer enabled */
  counter = 0;
  while (( timer0_irq_occurred < 2) && (counter < 0x300)){
    counter ++;
  };
  CMSDK_TIMER->CTRL   = 0x0000;  /* Stop Timer */
  /* Check timeout has not occurred */
  if (counter >= 0x300) {
     printf("ERROR : Timer interrupt enable fail.\n");
     err_code += (1<<0);
    }
  counter = 0;

  disable_irq();
  gic_disable_interrupt(TIMER0_INTR);
  if (err_code != 0) {
    printf ("ERROR : Interrupt test failed (0x%x)\n", err_code);
    return_val=1;
    err_code = 0;
    }

  return(return_val);

}

void timer_interrupt(int num, int src){
  timer0_irq_occurred++;
  CMSDK_TIMER0->INTCLEAR=1;
  return;
}

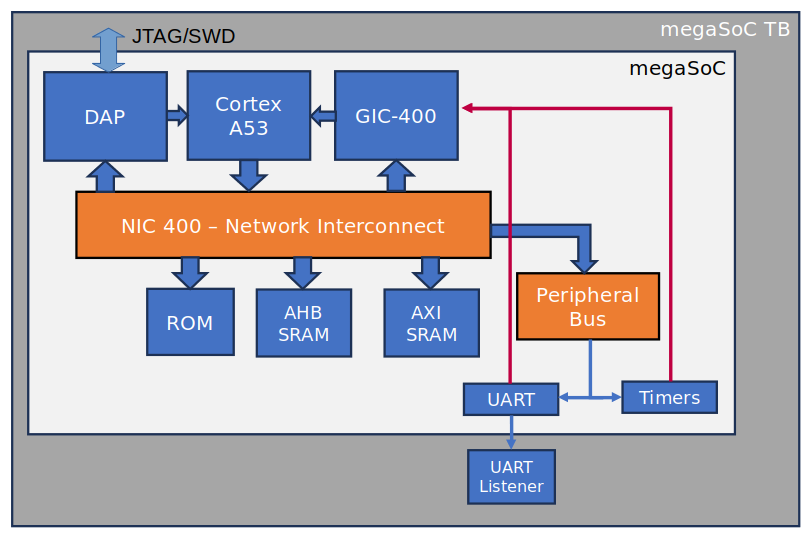

Debug Access Port-Lite integration

The last component to add before we can really call this a "CPU subsytem" is a debug access port. This is again relatively straightforward. There is an 2:1 APB MUX within DAP-Lite, one from the DAP itself and one from the system bus which both go to the CPU's APB debug port. The connections for JTAG and Serial Wire Debug ("SWD") are made to the top level of the chip.

It is difficult to verify that this is working in test bench apart from checking that the system side APB can read the debug APB port of the CPU. This has been done, but to really verify it is working a connection to an actual debugger is needed after the design is instantiated in an FPGA prototype environment.

Fixed AHB QSPI

The issue with the AHB QSPI is that the HRDATA register is filled as a shift register (as half bytes come over the QSPI). The issue is they become unaligned to the AHB addresses. It works fine if the access is 128 bits (same width as the AHB interface from the cache controller) or if the access is aligned to the right 128 bit boundary.

There were 2 options to fix this:

• make the QSPI read variable in length and then properly align the data to HADDR depending on the value of HSIZE
• Always fetch 128 bits from QSPI flash.

The second option was adopted, as doing single byte reads from the QSPI flash is wasteful in terms of time. In order not to waste time, with always fetching 128 bits from the QSPI flash, a NO_FETCH state was added to the QSPI controller, where if the last 128 bit aligned address is the same as the next one (i.e. masking the bottom 4 bits), then don't fetch a new one but keep the last value that was registered from the QSPI controller.

This is 'working' for now, while still some more verification remains to be completed, the A53 CPU subsystem can boot successfully and run code from the flash.

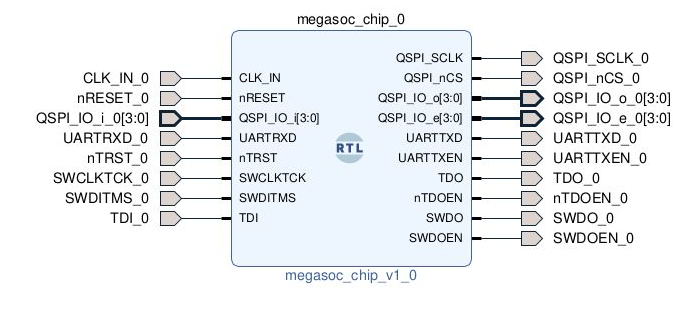

FPGA Implementation

The initial implementation of this will be to an Arm MPS3 FPGA development board, which is a bare-metal FPGA board using a Kintex Ultrascale FPGA. The board contains some UART-to-USB channels, an 8 MB QSPI flash, and SWD/JTAG connects (plus more peripherals that aren't being used right now). These have all been directly connected to the top level of the CPU subsystem.

FPGA implementation utilisation is as below:

• LUTS: 307739
• FF: 74275
• BRAM: 36
• DSP: 8
• LUTRAM: 75753

There is still some optimisation to do in terms of the FPGA, timing currently only passes at 5 MHz using an external clock, plans will be to introduce a PLL and hopefully this can be increased. There are also some hold time issues that need to be looked into, this is probably related to the very simple constraints that are currently set (only external constraints at the moment, i.e. clocks and IO).

Connecting to Debugger

Using the ARM MPS3 and ARM D-Stream debugger we are able to successfully read the ROM table over the SWD and JTAG interface. With the APB ROM table as bellow

•  ROM table base 0x40000000
• Coresight Base address 0x4001000
• CTI Base address 0x40020000

Cortex A53 is successfully detected. So for now the DAP-lite integration is successfully validated

Next Steps

Although there is still some more work to fully verify this CPU subsystem, it is now time to move this into a larger SoC infrastructure. This development will be continued in the MegaSoC project as we add more of the wider SoC architecture.
